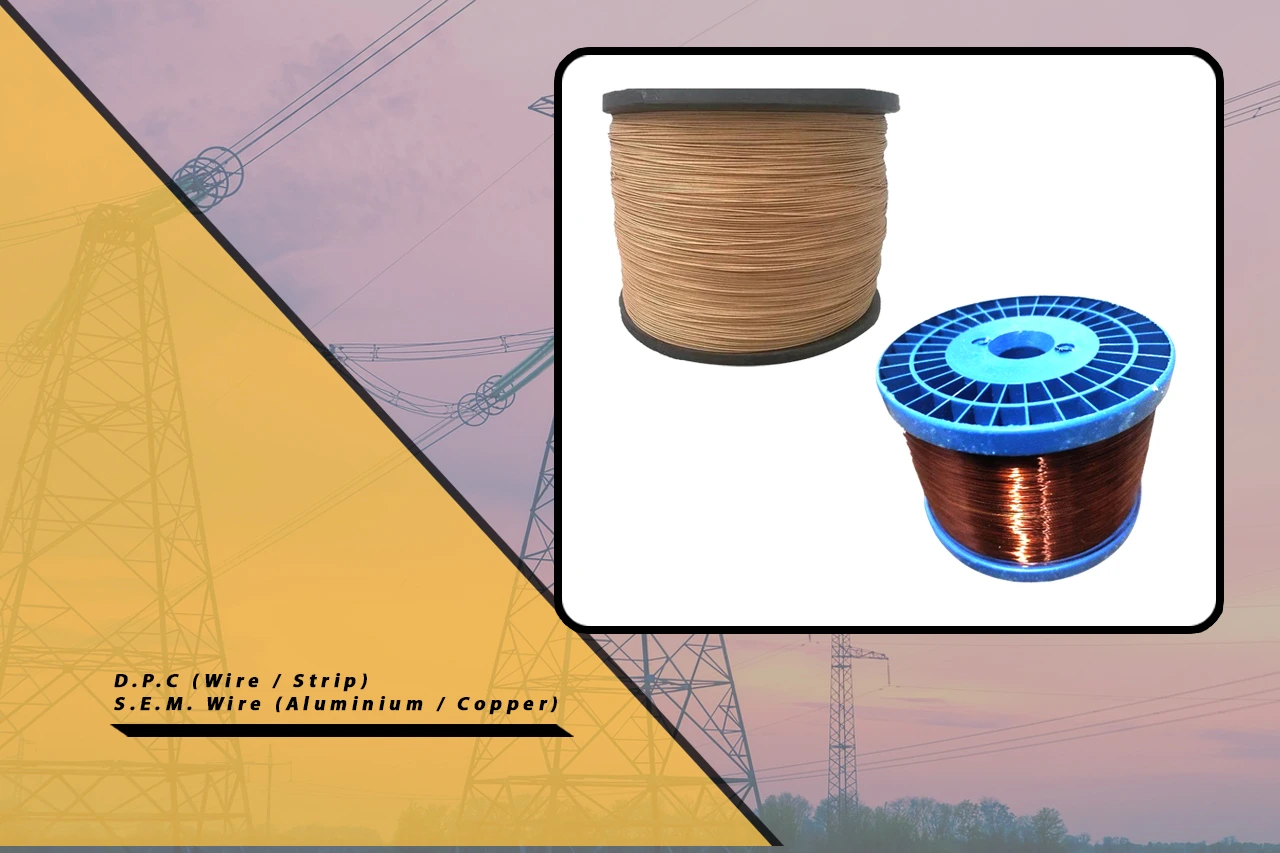

D.P.C (Wire / Strip) S.E.M. Wire (Aluminium / Copper)
Mayank Vidut is proud to introduce its expert services in supplying premium-quality DPC (Double Paper Covered) wires and strips, along with S.E.M. (Super Enamelled) wires in both aluminum and copper. These products are crafted for top-tier electrical applications—transformers, motors, generators, inverters, and more. Our offerings combine precision, reliability, and longevity for unmatched performance.
What is DPC Wire and Strip ?
DPC stands for Double Paper Covered wire. It refers to a solid copper or aluminum conductor wrapped with two layers of insulating kraft paper, each layer applied in opposite directions to ensure airtight insulation and mechanical strength
Key Features:
High Electrical Insulation – Two kraft paper layers prevent current leakage.
Mechanical Strength & Flexibility – Especially when using crepe kraft paper.
Custom Sizes – Conductors range from 1 mm to 5 mm diameter (round) and strips up to 75 sq mm
Applications:
Transformer windings (LT & HT)
Current & voltage transformer leads
Oil-cooled transformer windings
Inductive devices like chokes and reactors
Why Choose DPC Wire ?
Safety & High Insulation
The dual paper layer system offers durable insulation, heat resistance, and protection against mechanical stress.Durability & Reliability
Crepe kraft paper adds flexibility and strength, especially in shaped coils.Consistent Thermal Performance
DPC wire withstands transformer oil, heat, and aging, maintaining its performance even under high stress.Versatility
Ideal for electrical machinery of various ratings—from distribution transformers to high-voltage applications.
What Is SEM Wire ?
S.E.M. wire, or Super Enamelled (varnished) wire, is a conductor coated with a durable varnish applied at high temperature. It comes in aluminum or copper.
Features:
Smooth, insulating varnish coating with excellent dielectric strength.
Varnish types like Terebec or Isomelt polyester, rated as Class C insulation for high heat resistance .
Available in round wire (0.3 – 5 mm) and strip form (0.5 – 4 mm thick) .
Typical Applications:
Transformer windings
Motor coils
Generator and inverter components
Precision inductive devices
“At Mayank Vidut, we take pride in delivering high-performance C.R.G.O. core laminations for a wide range of transformer applications. With advanced machinery, strict quality control, and experienced professionals, we are committed to helping you build efficient and long-lasting electrical products.
Let us power your project with the best C.R.G.O. core laminations in India. Contact us today to get a free quote or technical consultation.”
Advantages of SEM Wire
Compact Insulation – Thin varnish allows high packing density.
Excellent Electrical Properties – Low dielectric loss and high breakdown strength.
Thermal & Mechanical Resistance – Varnish withstands high temperatures without cracking.
Cost-Efficient Production – Ideal for automated winding and manufacturing.
Our Production Capabilities
At Mayank Vidut, we follow global standards (IS, IEC, EN, ASTM) and offer fully customized production:
Raw Material
Copper and aluminum conductors sourced from top vendors.
Insulation using premium kraft paper and varnish.
Custom Size Range
Round wires: 0.3 – 5 mm diameter
Strips: 0.5 – 75 sq mm cross-section
DPC: conductor diameters 1–5 mm, strip sections 4–75 sq mm SEM: strips up to 25 mm wide, thickness up to 4 mm, round wires up to 5 mm.
Cutting & Coiling
Precision winding ensuring uniform layers
Paper layers wrapped accurately and varnish applied in controlled ovens
Coating & Curing
DPC coils cured under regulated temperature and pressure
SEM wires varnished and baked per insulation class requirements
Testing & Quality Assurance
Dimensions, resistance, and dielectric strength tested per IS 13778 and IEC 60851-5.
Stress tests at high temperature and voltage to ensure reliability
Packaging & Delivery
Coils and spools packed to protect insulation
Customized orders catered for different MVA ratings and coil types
Why Mayank Vidut Stands Out
- Certified Quality & Traceability
We comply with international standards and maintain robust batch records. Tailor-Made Solutions
From conductor material to insulation type and sizes, we customize everything.Expert Technical Team
Skilled engineers ensure perfect design, processing, and testing.High-End Tools & Technology
Modern slitting, winding, varnishing, and curing systems.Timely Delivery
Fast lead times and flexible packaging options.
- Certified Quality & Traceability
At Mayank Vidut, quality meets expertise. Our DPC wires and strips offer elite insulation and mechanical strength for transformer and coil applications. Our SEM enamelled wires deliver compact, high-efficiency performance for motors and generators. With strict quality control, customized manufacturing, and timely delivery, we stand out as a trusted partner for electrical manufacturers.
Boost your product reliability with our high-grade, customizable wire solutions. Contact Mayank Vidut today for a quote, sample, or technical advice, and let us power your projects to success.
